THE NEW SOLID-STATE POTENTIAL PROBE
Designed for installation even in the most challenging soils
Patent no. 202022000002267 Ministerial Patent Certificate

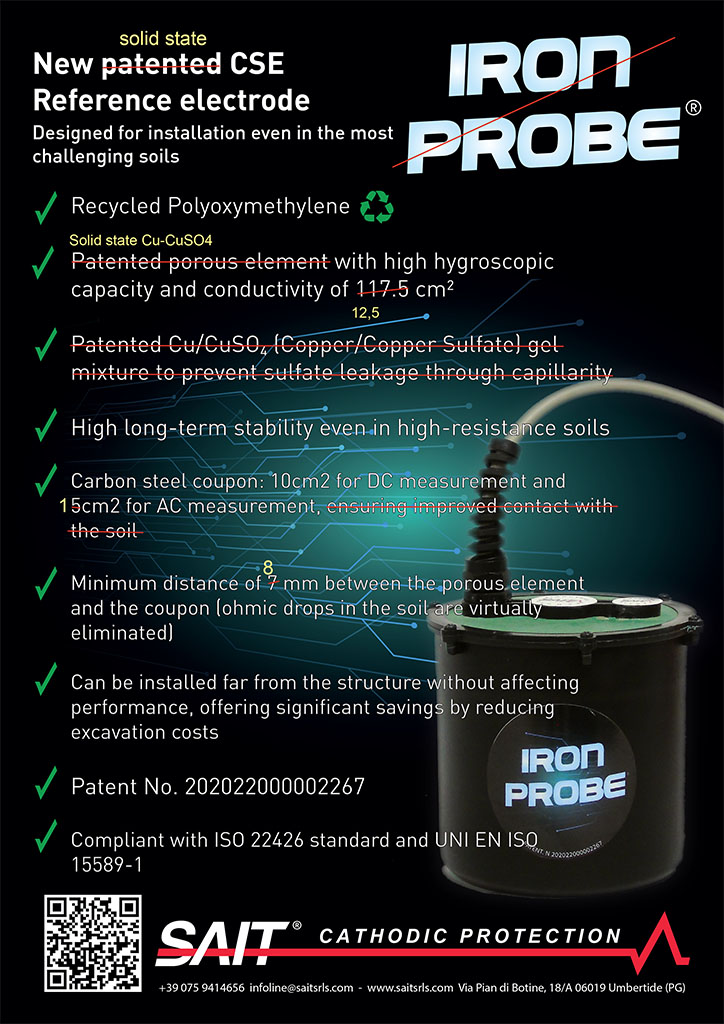

IRON PROBE REVERSE
Solid-state Copper/Copper Sulphate (Cu/CuSO4) reference electrode with integrated coupons for EIR-free potential measurement according to EN ISO 15589-1 and ISO 22426, for cathodic protection systems.
Iron Probe Reverse integrates two carbon steel polarization coupons (10 cm² for DC measurement and 1 cm² for AC measurement) placed only 8 mm from the porous plug: ohmic drops in the soil are virtually eliminated and the reading is extremely close to the real cathodic potential, even in high-resistivity soils.
Registered European trademark, patented.
Technical data
Construction features and performance of the IRON PROBE REVERSE
Technical features
| Case | Recycled polyoxymethylene |
|---|---|
| Size (H x Ø) | 180 x 110 mm |
| Weight | 5 kg |
| Electrode | Copper, 99% purity |
| Electrolyte - porous plug | Solid-state Cu/CuSO4 and ceramic mixture with high hygroscopicity and conductivity, 12.5 cm² contact surface area |
| Carbon steel coupons | DC measurement: 10 cm² - AC measurement: 1 cm² |
| Coupon / porous plug distance | 8 mm |
| Cable | 5 m FG16OR16 0.6/1 kV, 3 x 2.5 mm² |
Performance and operating conditions
| 24h CSE-AAC stability coupons not connected | min -120 mV / max -115 mV reference value -120 mV, max deviation ±5 mV |
|---|---|
| 24h CSE-AAC stability coupons connected | min -130 mV / max -110 mV reference value -120 mV, max deviation ±20 mV |
| Residual IR drop | Measured Eon -1.22 V vs real EIR-free -1.12 V: deviation -0.10 V |
| Ambient conditions | Natural soils, including high-resistivity soils, with low chloride content (<200 ppm) |
| Temperature | -5 °C ÷ +40 °C |
| Lifetime | > 25 years |
| Minimum input resistance of connected devices | 10 MΩ |

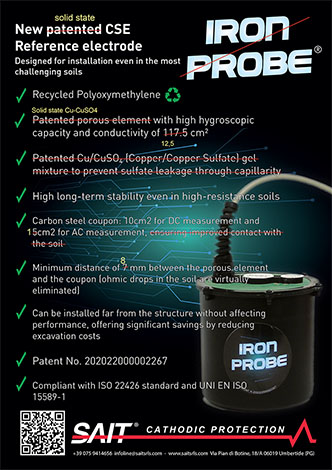

Iron Probe Reverse Features
Discover innovation in cathodic protection with IRON PROBE REVERSE
High-quality materials:
The electrolyte is impregnated into a 12.5 cm² porous plug made of a solid-state Cu/CuSO4 and ceramic mixture with high hygroscopicity and conductivity, ensuring long-term measurement stability compared with smaller surface areas, even in high-resistivity soils.
The case is made of recycled polyoxymethylene and the electrode of 99% pure copper, for a lifetime of over 25 years.
Measurement Accuracy:
Thanks to the very short distance between coupons and porous plug (8 mm), Iron Probe Reverse delivers an extremely accurate measurement of the real EIR-free potential: with a real potential of -1.12 V, the measured Eon value is -1.22 V, a deviation of only 0.10 V.
The two carbon steel coupons allow both DC voltage (10 cm²) and AC voltage (1 cm²) measurements.
Protect your infrastructure with maximum reliability.
IRON PROBE REVERSE ensures accurate potential measurements that stay stable over time, even in the most challenging soils.
Request informationSpecific Applications:
IR-free potential measurement:
Iron Probe Reverse is used to evaluate the real cathodic potential, free of electrolyte ohmic drops, on cathodically protected pipelines, tanks and other buried metal structures.
High-resistivity soils:
The highly hygroscopic solid-state porous plug keeps the measurement stable even in high-resistivity natural soils with low chloride content (<200 ppm).
DC and AC measurements:
With its two integrated coupons (10 cm² and 1 cm²), a single probe measures both DC voltage and AC voltage at the test point.
Operational Benefits:
Ohmic drops virtually eliminated:
The distance of only 8 mm between coupons and porous plug minimises the residual IR drop, improving the reliability of the collected data.
Lower excavation costs:
The probe can be installed far from the structure without affecting performance, offering significant savings on excavation and reinstatement.
Long lifetime and storage:
Lifetime of over 25 years. When stored indoors in a dry place, protected from freezing and direct sunlight, the probe has an unlimited shelf life.
